Feeding systems · Caps

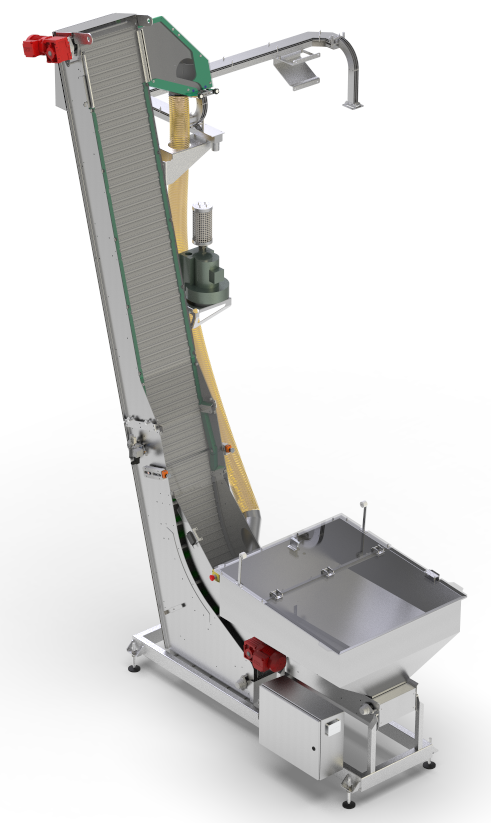

Waterfall cap feeders
Buffer, orientation and elevation of caps at high speed, in one machine, ready to connect to any capping machine.
Caps that are not correctly oriented overflow back into the selection bin, so the feeder runs continuously. Due to its working principle, the waterfall feeder is suitable for flat caps only. For other shapes, see our rotary cap sorters.
Integration into your line
- Discharge height as per your capping machine.
- Exit on right or left side to suit the whole line layout.
- Discharge of caps by air jet: compressed air, or turbine with or without HEPA filter.
- Discharge chutes (fixed length or telescopic) and cap conveyors (belt or air) to the capper.
- Electrical controls to suit your machine: signals exchanged with your capper, PLC brand of your choice, voltage for your country.
- 1000/mincaps, up to (depending on cap size)
- 400 or 700 lhopper
- Left or rightexit, to suit your line
- IP55wash down safe, hygienic design
- SUS304and engineering plastics
Cap quality options
- Cap de-dusting by anti-static air blow and vacuum.
- Cap trap for upside down caps.
- Rejection of caps with no tamper evidence ring.
- Full cap inspection system (color, missing foil or foam, etc.).
Construction
- 400 or 700 liter hopper, clear covers on hopper and conveyor.
- PP belt conveyor with product supports.
- Corrosion resistant: stainless steel 304 and engineering plastics.
- Hygienic design, wash down safe (IP55), easy drain system as an option.
For your engineering team
- 2D and 3D drawings for your line layout, on request.
- Datasheet.
- Electrical diagrams and I/O list for the connection to your machine.
- CE marking and declaration of conformity.
- Manuals in other languages.
Need a waterfall feeder for your line?
Whether you build filling and capping machines or run your own bottling line, send us your cap samples or drawing, the speed and the capping machine it will feed. We will propose the version, layout and options.
