Feeding systems · Pumps
Pump sorters and elevators
Rotary sorters orient trigger and dispenser pumps for the capping machine, fed by an elevator that keeps a constant quantity of pumps in the sorter.

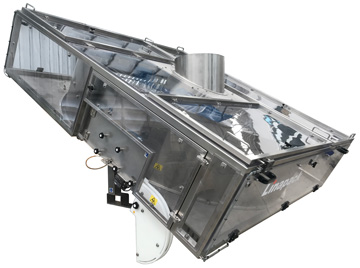

Pump sorters
Features
- Two standard models, diameter 1500 and 2000 mm, sorting up to 260 pumps/min.
- Discharge chutes as per your capping machine.
- Clear covers on hopper.
Options
- Electrical controls to suit your line: signals exchanged with your machine, PLC brand of your choice, voltage for your country.
- 260/minpumps, up to
- 1500 or 2000 mmsorter diameter
- 400 lelevator hopper, larger on request
- IP55wash down safe
- SUS304and engineering plastics
Pump elevators
An elevator feeds the pump sorter. It keeps a constant quantity of pumps in the sorter, which the sorter needs to work efficiently.
Features
- 400 liter hopper as standard.
- Discharge height and belt speed as per your line.
- PP modular belt conveyor with product supports.
- Clear cover on conveyor.
- Four nylon swivel wheels with total lock.
Options
- Larger hopper.
- Electrical controls to suit your line: signals exchanged with your machine, PLC brand of your choice, voltage for your country.
See it running
For your engineering team
- 2D and 3D drawings for your line layout, on request.
- Datasheet.
- Electrical diagrams and I/O list for the connection to your machine.
- CE marking and declaration of conformity.
- Manuals in other languages.
Feeding pumps to your capper?
Send us your pump samples or drawing and the speed you need. We will propose the sorter size, the elevator and the discharge chutes.
Send an enquiry
